| C | C | Si | Si | Mn | Mn | P | P | S | S | Cr | Cr | Ni | Ni | Mo | Mo | N | N | Cu | Cu | Ti | Ti | Nb | Nb | ||
| min | max | min | max | min | max | min | max | min | max | min | max | min | max | min | max | min | max | min | max | min | max | min | max | ||
| J3459 | SUS304TP | 0.00 | 0.080 | 0.00 | 1.00 | 0.00 | 2.00 | 0.00 | 0.040 | 0.00 | 0.030 | 18.00 | 20.00 | 8.00 | 11.00 | ||||||||||
| J3459 | SUS304HP | 0.040 | 0.100 | 0.00 | 0.75 | 0.00 | 2.00 | 0.00 | 0.040 | 0.00 | 0.030 | 18.00 | 20.00 | 8.00 | 11.00 | ||||||||||
| J3459 | SUS304LTP | 0.00 | 0.030 | 0.00 | 1.00 | 0.00 | 2.00 | 0.00 | 0.040 | 0.00 | 0.030 | 18.00 | 20.00 | 9.00 | 13.00 | ||||||||||
| J3459 | SUS310STP | 0.00 | 0.080 | 0.00 | 1.50 | 0.00 | 2.00 | 0.00 | 0.040 | 0.00 | 0.030 | 24.00 | 26.00 | 19.00 | 22.00 | ||||||||||
| J3459 | SUS316TP | 0.00 | 0.080 | 0.00 | 1.00 | 0.00 | 2.00 | 0.00 | 0.040 | 0.00 | 0.030 | 16.00 | 18.00 | 10.00 | 14.00 | 2.00 | 3.00 | ||||||||
| J3459 | SUS316HTP | 0.040 | 0.100 | 0.00 | 0.75 | 0.00 | 2.00 | 0.00 | 0.030 | 0.00 | 0.030 | 16.00 | 18.00 | 11.00 | 14.00 | 2.00 | 3.00 | ||||||||
| J3459 | SUS316LTP | 0.00 | 0.030 | 0.00 | 1.00 | 0.00 | 2.00 | 0.00 | 0.040 | 0.00 | 0.030 | 16.00 | 18.00 | 12.00 | 16.00 | 2.00 | 3.00 | ||||||||
| J3459 | SUS316TiTP | 0.00 | 0.080 | 0.00 | 1.00 | 0.00 | 2.00 | 0.00 | 0.040 | 0.00 | 0.030 | 16.00 | 18.00 | 10.00 | 14.00 | 2.00 | 3.00 | 5*C | |||||||
| J3459 | SUS317TP | 0.00 | 0.080 | 0.00 | 1.00 | 0.00 | 2.00 | 0.00 | 0.040 | 0.00 | 0.030 | 18.00 | 20.00 | 11.00 | 15.00 | 3.00 | 4.00 | ||||||||
| J3459 | SUS317LTP | 0.00 | 0.030 | 0.00 | 1.00 | 0.00 | 2.00 | 0.00 | 0.040 | 0.00 | 0.030 | 18.00 | 20.00 | 11.00 | 15.00 | 3.00 | 4.00 | ||||||||
| J3459 | SUS321TP | 0.00 | 0.080 | 0.00 | 1.00 | 0.00 | 2.00 | 0.00 | 0.040 | 0.00 | 0.030 | 17.00 | 19.00 | 9.00 | 13.00 | 5*C | |||||||||
| J3459 | SUS321HTP | 0.040 | 0.100 | 0.00 | 0.75 | 0.00 | 2.00 | 0.00 | 0.030 | 0.00 | 0.030 | 17.00 | 20.00 | 9.00 | 13.00 | 4*C | 0.60 | ||||||||
| J3459 | TP347TP | 0.00 | 0.080 | 0.00 | 1.00 | 0.00 | 2.00 | 0.00 | 0.040 | 0.00 | 0.030 | 17.00 | 19.00 | 9.00 | 13.00 | 10*C | |||||||||
| J3459 | TP347HTP | 0.040 | 0.100 | 0.00 | 1.00 | 0.00 | 2.00 | 0.00 | 0.030 | 0.00 | 0.030 | 17.00 | 20.00 | 9.00 | 13.00 | 8*C | 1.00 | ||||||||
| J3463 | SUS304TB | 0.00 | 0.080 | 0.00 | 1.00 | 0.00 | 2.00 | 0.00 | 0.040 | 0.00 | 0.030 | 18.00 | 20.00 | 8.00 | 11.00 | ||||||||||
| J3463 | SUS304HTB | 0.040 | 0.100 | 0.00 | 0.75 | 0.00 | 2.00 | 0.00 | 0.040 | 0.00 | 0.030 | 18.00 | 20.00 | 8.00 | 11.00 | ||||||||||
| J3463 | SUS304LTB | 0.00 | 0.030 | 0.00 | 1.00 | 0.00 | 2.00 | 0.00 | 0.040 | 0.00 | 0.030 | 18.00 | 20.00 | 9.00 | 13.00 | ||||||||||
| J3463 | SUS310STB | 0.00 | 0.080 | 0.00 | 1.50 | 0.00 | 2.00 | 0.00 | 0.040 | 0.00 | 0.030 | 24.00 | 26.00 | 19.00 | 22.00 | ||||||||||
| J3463 | SUS316TB | 0.00 | 0.080 | 0.00 | 1.00 | 0.00 | 2.00 | 0.00 | 0.040 | 0.00 | 0.030 | 16.00 | 18.00 | 10.00 | 14.00 | 2.00 | 3.00 | ||||||||
| J3463 | SUS316HTB | 0.040 | 0.100 | 0.00 | 0.75 | 0.00 | 2.00 | 0.00 | 0.030 | 0.00 | 0.030 | 16.00 | 18.00 | 11.00 | 14.00 | 2.00 | 3.00 | ||||||||
| J3463 | SUS316LTB | 0.00 | 0.030 | 0.00 | 1.00 | 0.00 | 2.00 | 0.00 | 0.040 | 0.00 | 0.030 | 16.00 | 18.00 | 12.00 | 16.00 | 2.00 | 3.00 | ||||||||
| J3463 | SUS316TiTB | 0.00 | 0.080 | 0.00 | 1.00 | 0.00 | 2.00 | 0.00 | 0.040 | 0.00 | 0.030 | 16.00 | 18.00 | 10.00 | 14.00 | 2.00 | 3.00 | 5*C | |||||||
| J3463 | SUS317TB | 0.00 | 0.080 | 0.00 | 1.00 | 0.00 | 2.00 | 0.00 | 0.040 | 0.00 | 0.030 | 18.00 | 20.00 | 11.00 | 15.00 | 3.00 | 4.00 | ||||||||
| J3463 | SUS317LTB | 0.00 | 0.030 | 0.00 | 1.00 | 0.00 | 2.00 | 0.00 | 0.040 | 0.00 | 0.030 | 18.00 | 20.00 | 11.00 | 15.00 | 3.00 | 4.00 | ||||||||
| J3463 | SUS321TB | 0.00 | 0.080 | 0.00 | 1.00 | 0.00 | 2.00 | 0.00 | 0.040 | 0.00 | 0.030 | 17.00 | 19.00 | 9.00 | 13.00 | 5*C | |||||||||
| J3463 | SUS321HTB | 0.040 | 0.100 | 0.00 | 0.75 | 0.00 | 2.00 | 0.00 | 0.030 | 0.00 | 0.030 | 17.00 | 20.00 | 9.00 | 13.00 | 4*C | 0.60 | ||||||||
| J3463 | TP347TB | 0.00 | 0.080 | 0.00 | 1.00 | 0.00 | 2.00 | 0.00 | 0.040 | 0.00 | 0.030 | 17.00 | 19.00 | 9.00 | 13.00 | 10*C | |||||||||
| J3463 | TP347HTB | 0.040 | 0.100 | 0.00 | 1.00 | 0.00 | 2.00 | 0.00 | 0.030 | 0.00 | 0.030 | 17.00 | 20.00 |
All Products
-
Stainless Steel Seamless Pipe
-
Stainless Steel Welded Pipe
-
Stainless Steel Pipe Fittings
-
Stainless Steel Sanitary Pipe
-
Duplex Stainless Steel Pipe
-
Bright Annealed Tube
-
Stainless Steel Heat Exchanger Tube
-
Stainless Steel Round Rod
-
Stainless Steel Flange
-
Stainless Steel Valve
-
Nickel Alloy Pipes
-
Screwed Pipe Fittings
-
Stainless Steel Capillary Tube
-
Sam"Wenzhou Shangle Steel's products are truly game-changers. Their stainless steel pipes have not only streamlined our operations but also boosted overall efficiency. High quality, reliable, and durable, they are a valuable addition to our projects!" -
Peter"Choosing Wenzhou Shangle Steel is one of the best decisions we've made. Their commitment to quality and customer service is unparalleled. The stainless steel pipes we procured became integral to our manufacturing process and significantly improved our productivity!"
JIS G3459 SUS304 Stainless Steel Seamless Pipe Thick Wall Thickness Pipe
| Place of Origin | CHINA |
|---|---|
| Brand Name | Shangle |
| Certification | PED,IS09001 |
| Model Number | 12.7 |
| Minimum Order Quantity | Negotiable |
| Price | Negotiable |
| Packaging Details | Woven Packing |
| Delivery Time | 30DAYS |
| Payment Terms | L/C, T/T |
| Supply Ability | 500TONS/30DAYS |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | 304 ,304L 310 321 316 316L | Standard | AISI, ASTM, DIN, EN, GB |
|---|---|---|---|
| Shape | SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80 | Technique | Cold Draw |
| Application | Oil, Petroleum/Power | Package | Woven Packing |
| Highlight | SUS304 Stainless Steel Seamless Pipe |
||
Product Description

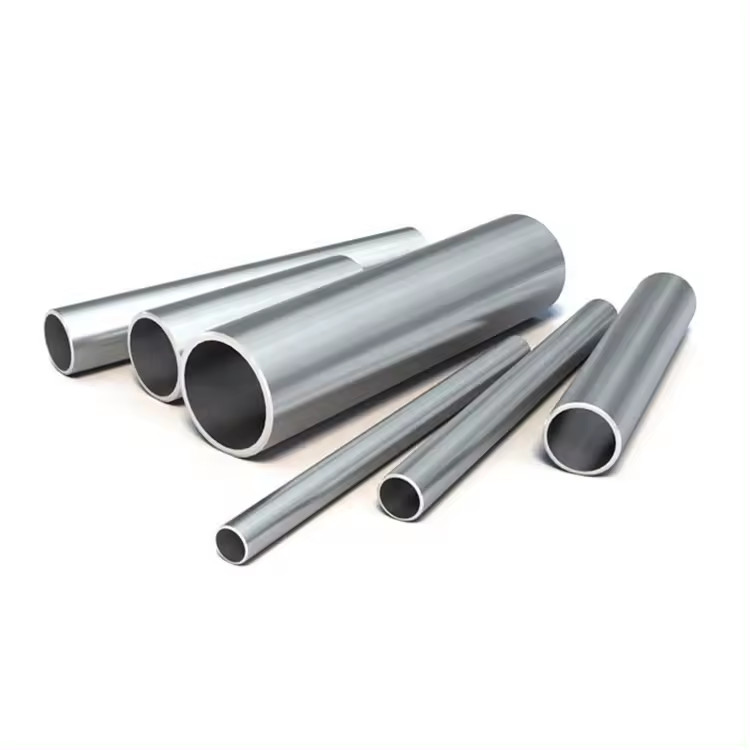

JIS G3459 SUS304 Stainless Steel Seamless Pipe Thick Wall Thickness Pipe
Wenzhou Shangle Steel Co., Ltd. (Shangle) founded in 2017,is a comprehensive company integrating industry and trade.As a leading supplier of stainless steel products in Wenzhou, it has a wide range of products in stock that have been rigorously tested and are ready to be shipped.
JIS G3459 stainless steel pipes are used for corrosion-resistant pipes. Different grades are suitable for low temperature and high temperature conditions. The manufacturing method can be cold working or hot working, so it can meet the requirements of various specific products to meet the needs of customer applications.
Description
JIS G3459 G3463 SUS304 SUS304L SUS 310S SUS316 SUS316L SUS317L Chemical Composition Chart
Chemical Composition:
| Grade | Chemical composition | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| C | Si | Mn | P | S | Ni | Cr | Mo | Others | |
| SUS 304 HTP | 0.04~0.10 | 0.75max. | 2.00 max. | 0.040 max. | 0.030 max. | 8.00~11.00 | 18.00~20.00 | - | - |
| SUS 309 STP | 0.08 max. | 1.00 max. | 2.00 max. | 0.040 max. | 0.030 max. | 12.00~15.00 | 22.00~24.00 | - | - |
| SUS 310 TP | 0.15 max. | 1.50 max. | 2.00 max. | 0.040 max. | 0.030 max. | 19.00~22.00 | 24.00~26.00 | - | - |
| 0.08 max. | 1.50 max. | 2.00 max. | 0.040 max. | 0.030 max. | 19.00~22.00 | 24.00~26.00 | - | - | |
| SUS 316TP | 0.08 max. | 1.00 max. | 2.00 max. | 0.040 max. | 0.030 max. | 10.00~14.00 | 16.00~18.00 | 2.00~3.00 | - |
| SUS 316HTP | 0.04~0.10 | 0.75 max. | 2.00 max. | 0.030 max. | 0.030 max. | 11.00~14.00 | 16.00~18.00 | 2.00~3.00 | - |
| SUS 316LTP | 0.030 max. | 1.00 max. | 2.00 max. | 0.040 max. | 0.030 max. | 12.00~16.00 | 16.00~18.00 | 2.00~3.00 | - |
| SUS 316HTP | 0.04~0.10 | 0.75 max. | 2.00 max. | 0.030 max. | 0.030 max. | 11.00~14.00 | 16.00~18.00 | 2.00~3.00 | - |
| SUS 316TiTP | 0.08 max. | 1.00 max. | 2.00 max. | 0.040 max. | 0.030 max. | 10.00~14.00 | 16.00~18.00 | 2.00~3.00 | Ti 5XC % min. |
Mechanical properties:
| Grade | Tensile strength | Proof stress | Elongation % | |||
|---|---|---|---|---|---|---|
| kgf/mm2 {N/mm2} | kgf/mm2 {N/mm2} | No. 11 test piece No. 12 test piece |
No.5 test piece | No.4 test piece | ||
| Longitudinal direction | Transverse direction | Longitudinal direction | Transverse direction | |||
| SUS 304TP | 53{520}min. | 21{206} min | 35 min | 25 min | 30 min | 22 min |
| SUS 304HTP | 53{520}min. | 21{206} min | 35 min | 25 min | 30 min | 22 min |
| SUS 304LTP | 49{481}min. | 18{177} min | 35 min | 25 min | 30 min | 22 min |
