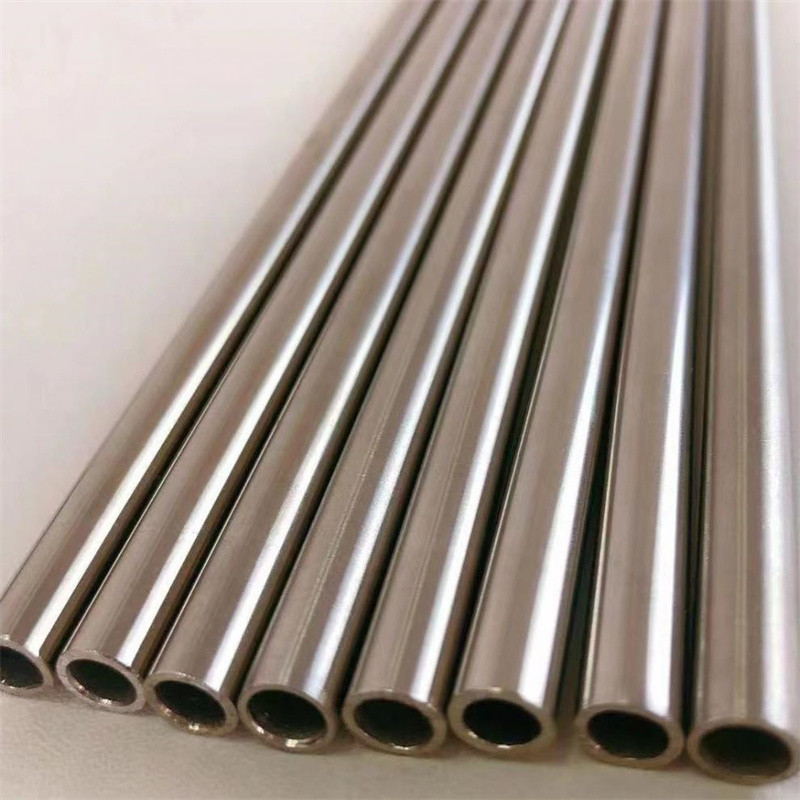

ASTM A249 / ASME SA249 TP316L Bright Annealed Tube Stainless Steel Welded Tube

  • ASTM A249 / ASME SA249 TP316L Bright Annealed Tube Stainless Steel Welded Tube
Place of Origin CHINA
Brand Name Shangle
Certification PED,IS09001
Model Number 12.7
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details Woven Packing
Delivery Time 30DAYS
Payment Terms L/C, T/T
Supply Ability 500TONS/30DAYS

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material 304 ,304L 310 321 316 316L Standard AISI, ASTM, DIN, EN, GB
Shape SCH10, SCH20, SCH30, STD, SCH40, SCH60, SCH80 Technique Cold Draw
Application Oil, Petroleum/Power Package Woven Packing
Highlight

TP316L Bright Annealed Tube

,

ASTM A249 Bright Annealed Tube

,

ASME SA249 TP316L Bright Annealed Tube
Leave a Message
Product Description

ASTM A249 / ASME SA249 TP316L BA Stainless Steel Welded Tube Heat Exchanger Tube





ASTM A249 is a standard specification for welded austenitic steel boiler, superheater, heat-exchanger, and condenser tubes. A249 stainless steel tubes are typically produced using either the electric-resistance-welding (ERW) or the automatic-welding (AW) process. The bright annealing process is used to produce a bright, reflective finish on the surface of the tube. Bright annealed stainless steel welded pipe is widely used in making military products, semiconductor, biological medicine, precision instruments and meters, hydraulic parts and many other industrial products.





ASTM/ASME SA249 TP316L Stainless Steel Welded Tube Equivalent Grade

JIS WNR. / DIN UNS AISI EN GB
SUS316L 1.4404 S31603 316L 02Cr17Ni12Mo2 022Cr17Ni12Mo2





ASTM/ASME SA249 TP316L Stainless Steel Welded Tube Mechanical Properties

  Tensile Stress (Mpa) Yield Stress (Mpa) Elongation (%) Elongation (%)
SA 249 316L 485 170 35 25
1.4404 490-690 190 40 30





ASTM/ASME SA249 TP316L Stainless Steel Welded Tube Chemical Composition

SA 249 C Mn P S Si Ni Cr Mo N
316L 0.035 2.00 0.045 0.030 1.0 10-14 16-18 2-3
1.4404 0.03 2.00 0.040 0.015 1.0 10-13 16.5-18.5 2-2.5 0.11





Other Stainless Steel Welded Tube Material Grades

American Standard TP304 , TP304L , TP310S , TP316 , TP316L , TP316Ti , TP321 , TP347 , 904L , S31803 Etc
European Standard 1.4301 , 1.4306 , 1.4845 , 1.4401 , 1.4404 , 1.4571 , 1.4541 , 1.4550 , 1.4539 , 1.4462 Etc
German Standard X5CrNi18-10 , X2CrNi19-11 , X12CrNi25-21 , X5CrNi17-12-2 , X5CrNi17-12-3 , X2CrNiMo18-14-3 , X6CrNiTi18-10 , X6CrNiTb18-10 Etc





Purpose and advantages of bright annealing:

1) Eliminate work hardening and obtain satisfactory metallographic structure.

2) Obtain a bright, non-oxidizing and corrosion-resistant surface.

3) Bright treatment keeps the rolling surface smooth, and a bright surface can be obtained without post-treatment.





Yuhong can provide various material grades, including stainless steel/ duplex/ nickel alloy. We've been in business of supplying pipes and fittings worldwidely for more than 20years. Now Yuhong as a reliable partner, providing satisfactory solutions in industrial pipeline system field. We are confident that Yuhong can bring you a superior experience compare same as your regular supplier.





Hydraulic Pressure Test







Uses and Applications

1. Common industrial services (Petroleum, chemical, paper, fertilizer, fabric, aviation and nuclear)
2. Fluid, gas and oil industry
3. Heat transmission and pressure service
4. Construction and ornamental
5. Boilers and Heat exchangers
6. Decoration purpose, boiler, auto parts, medical device, food industry, building materials)ASTM A249 / ASME SA249 TP316L Bright Annealed Tube Stainless Steel Welded Tube 0
